NWAVE Tutorial 6: Audio Classification on H1v2 Hardware Model
Same yes/no task and training flow as Tutorials 4–5, but on the H1v2 chip. H1v2 introduces different hardware constraints — each one is explained below when it first appears in the code.
- H1v2 weight range
[-1.66, 1.66]instead of H1v1's[-0.9, 0.9] - H1v2 mismatch lives in the layer, not the synapse
fluct_initneeds a higher ξ target on H1v2 to keep weights in range- Pair with
nwavesdk/docs/100a/h2/chip-constraints.mdandnwavesdk/docs/100a/initializations/fluct_init.md
1. Setup and Imports
import os
import shutil
import matplotlib.pyplot as plt
import numpy as np
import scipy.io.wavfile as wavfile
import torch
import torch.nn as nn
from torchaudio.datasets import SPEECHCOMMANDS
from nwavesdk import NWaveDataGen, NWaveDataloaderConfig
from nwavesdk.layers import H1v2Frontend, H1v2Synapse, H1v2Layer, prepare_net
from nwavesdk.init import fluct_init, frontend_firing_init
from nwavesdk.init.hardware import init_weights
from nwavesdk.loss import (
topology_loss,
weight_magnitude_loss,
firing_rate_target_mse_loss,
)
from nwavesdk.metrics import accuracy
from nwavesdk.surrogate import fast_sigmoid
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
device_flag = "gpu" if device.type == "cuda" else "cpu"
torch.manual_seed(7)
np.random.seed(7)
print(f"Device: {device}")
nwavesdk version: 1.0.0a0+rocm
Device: cuda
2. Dataset and Preprocessing
Same dataset and preprocessing as Tutorials 4–5. If train_commands.pt and val_commands.pt already exist from a previous run, load them directly and skip the download cells below.
# ============================================
# CONFIGURATION: Choose your 2 words
# ============================================
# Available words in Speech Commands v0.02:
# yes, no, up, down, left, right, on, off, stop, go,
# zero, one, two, three, four, five, six, seven, eight, nine,
# bed, bird, cat, dog, happy, house, marvin, sheila, tree, wow
WORD_1 = "yes" # Class 0
WORD_2 = "no" # Class 1
# Audio parameters
SAMPLE_RATE = 16000 # Speech Commands native sample rate
RECORDING_DURATION_S = 1.0 # Each clip is 1 second
print(f"Training binary classifier: '{WORD_1}' (class 0) vs '{WORD_2}' (class 1)")
Training binary classifier: 'yes' (class 0) vs 'no' (class 1)
from torchaudio.datasets import SPEECHCOMMANDS
# Download Speech Commands dataset
os.makedirs("data", exist_ok=True)
class SubsetSpeechCommands(SPEECHCOMMANDS):
"""Speech Commands dataset filtered to specific words."""
def __init__(self, root, subset, words, download=True):
super().__init__(root, download=download, subset=subset)
self.words = words
# Filter to only include specified words
self._walker = [
item
for item in self._walker
if os.path.basename(os.path.dirname(item)) in words
]
# Load training and validation subsets
print(f"Downloading Speech Commands dataset (this may take a few minutes)...")
train_dataset = SubsetSpeechCommands("data", subset="training", words=[WORD_1, WORD_2])
val_dataset = SubsetSpeechCommands("data", subset="validation", words=[WORD_1, WORD_2])
print(f"\nDataset loaded:")
print(f" Training samples: {len(train_dataset)}")
print(f" Validation samples: {len(val_dataset)}")
Downloading Speech Commands dataset (this may take a few minutes)...
Dataset loaded:
Training samples: 6358
Validation samples: 803
import scipy.io.wavfile as wavfile
# Prepare data directory structure for NWaveDataGen
# NWaveDataGen expects: data_parent/class_name/*.wav
target_dir = "data_for_nwave_commands"
word1_dir = os.path.join(target_dir, WORD_1)
word2_dir = os.path.join(target_dir, WORD_2)
# Clean and create directories
if os.path.exists(target_dir):
shutil.rmtree(target_dir)
os.makedirs(word1_dir, exist_ok=True)
os.makedirs(word2_dir, exist_ok=True)
def save_dataset_to_folders(dataset, word1_dir, word2_dir, word1, word2, prefix=""):
"""Save dataset samples to class folders as WAV files."""
counts = {word1: 0, word2: 0}
for i, (waveform, sample_rate, label, speaker_id, utterance_num) in enumerate(
dataset
):
# Determine output directory based on label
if label == word1:
out_dir = word1_dir
elif label == word2:
out_dir = word2_dir
else:
continue
# Convert to numpy and ensure correct format
audio = waveform.squeeze().numpy()
# Pad or trim to exactly 1 second
target_length = sample_rate # 1 second
if len(audio) < target_length:
audio = np.pad(audio, (0, target_length - len(audio)))
else:
audio = audio[:target_length]
# Convert to int16 for WAV file (scipy.io.wavfile format)
audio_int16 = (audio * 32767).astype(np.int16)
# Save file
filename = f"{prefix}{label}_{speaker_id}_{utterance_num}_{i}.wav"
filepath = os.path.join(out_dir, filename)
wavfile.write(filepath, sample_rate, audio_int16)
counts[label] += 1
return counts
# Save training data
print("Preparing training data...")
train_counts = save_dataset_to_folders(
train_dataset, word1_dir, word2_dir, WORD_1, WORD_2, prefix="train_"
)
# Save validation data
print("Preparing validation data...")
val_counts = save_dataset_to_folders(
val_dataset, word1_dir, word2_dir, WORD_1, WORD_2, prefix="val_"
)
print(f"\nData prepared in '{target_dir}':")
print(f" {WORD_1}/: {train_counts[WORD_1] + val_counts[WORD_1]} files")
print(f" {WORD_2}/: {train_counts[WORD_2] + val_counts[WORD_2]} files")
Preparing training data...
Preparing validation data...
Data prepared in 'data_for_nwave_commands':
yes/: 3625 files
no/: 3536 files
from nwavesdk import NWaveDataGen, NWaveDataloaderConfig
data_config = NWaveDataloaderConfig(
batch_size=16,
val_split=0.15,
test_split=0.0,
random_state=123,
num_workers=4,
shuffle_train=True,
)
# Create data generator with hardware filterbank
dm = NWaveDataGen(
data_parent=target_dir,
sample_rate=SAMPLE_RATE,
recording_duration_s=RECORDING_DURATION_S,
sim_time_s=8e-3, # 8ms time bins
dataloader_config=data_config,
task="classification",
return_filename=True,
)
loaders = dm.dataloaders()
train_loader = loaders["train"]
val_loader = loaders["val"]
# Get number of filter channels from first batch
x, y, fn = next(iter(train_loader))
N_CHANNELS = x.shape[2]
print(f"\nInput shape: {x.shape} (batch, timesteps, channels)")
print(f"Number of filter channels: {N_CHANNELS}")
print(
f"\nDataset split: {len(train_loader.dataset)} train, {len(val_loader.dataset)} validation"
)
2026-05-07 15:10:08,778 - root - WARNING - Using 13 valid freqs out of 16 for sr=16000Hz (Nyquist=8000.0Hz).
Classes (loading wavs): 0%| | 0/2 [00:00<?, ?it/s]
Loading no: 0%| | 0/3536 [00:00<?, ?it/s]
Loading yes: 0%| | 0/3625 [00:00<?, ?it/s]
Filtering no: 0%| | 0/3536 [00:00<?, ?it/s]
Filtering yes: 0%| | 0/3625 [00:00<?, ?it/s]
Input shape: torch.Size([16, 125, 13]) (batch, timesteps, channels)
Number of filter channels: 13
Dataset split: 6087 train, 1074 validation
# # (Optional) Save/Load dataloader
torch.save(train_loader, "train_commands.pt")
torch.save(val_loader, "val_commands.pt")
train_loader = torch.load("train_commands.pt", weights_only=False)
val_loader = torch.load("val_commands.pt", weights_only=False)
3. H1v2 model definition
Input → H1v2Frontend → H1v2Layer → H1v2Synapse → H1v2Layer → H1v2Synapse → H1v2Layer
Same structure as Tutorial 4, with H1v2 layers throughout. prepare_net(model) must be called once per batch before the forward pass.
Warning
H1 class models (both H1v1 and H1v2) suffer a gradient spike when mem is close to 0, thus to avoid gradient explosions is important to keep neurons in a healthy range of activity. Additionaly H1v2 is more quiescent than H1v1 (lower transfer of charge per weight unit) causing the training to be less stable under low imput condition. For this reason it is advisable for this tutorial to not go lower than 32ms for 8ms timesteps.
def dense_topology_penalty(model, lam):
return topology_loss(model.syn_hidden, lam=lam) + topology_loss(
model.syn_out, lam=lam
)
class H2YesNoNet(nn.Module):
"""Frontend-first H1v2 classifier for yes/no keyword spotting."""
def __init__(self, n_channels, hidden_size=64, num_classes=2, quantized=False):
super().__init__()
self.device_flag = device_flag
slope = fast_sigmoid(slope=25.0)
frontend_kwargs = {}
dense_kwargs = {}
if quantized:
frontend_kwargs["quantization_bit"] = 6
dense_kwargs["quantization_bit"] = 6
self.frontend = H1v2Frontend(
nb_inputs=n_channels,
device=self.device_flag,
**frontend_kwargs,
)
self.frontend_layer = H1v2Layer(
n_neurons=n_channels,
taus=32e-3,
dt=8e-3,
spike_grad=slope,
device=self.device_flag,
)
self.syn_hidden = H1v2Synapse(
n_channels,
hidden_size,
device=self.device_flag,
**dense_kwargs,
)
self.hidden = H1v2Layer(
n_neurons=hidden_size,
taus=64e-3,
dt=8e-3,
spike_grad=slope,
device=self.device_flag,
)
self.syn_out = H1v2Synapse(
hidden_size,
num_classes,
device=self.device_flag,
**dense_kwargs,
)
self.out = H1v2Layer(
n_neurons=num_classes,
taus=64e-3,
dt=8e-3,
spike_grad=slope,
device=self.device_flag,
)
self.frontend_stage = (self.frontend, self.frontend_layer)
self.layer_pairs = [(self.syn_hidden, self.hidden), (self.syn_out, self.out)]
def forward(self, x):
prepare_net(self, collect_metrics=False)
if self.device_flag == "gpu":
cur0 = self.frontend(x)
spk0, _ = self.frontend_layer(cur0)
cur1 = self.syn_hidden(spk0)
spk1, _ = self.hidden(cur1)
cur2 = self.syn_out(spk1)
spk2, _ = self.out(cur2)
self.frontend_trace = spk0
self.hidden_trace = spk1
self.output_trace = spk2
return spk2
frontend_spk = []
hidden_spk = []
output_spk = []
for t in range(x.shape[1]):
cur0 = self.frontend(x[:, t, :])
spk0, _ = self.frontend_layer(cur0)
cur1 = self.syn_hidden(spk0)
spk1, _ = self.hidden(cur1)
cur2 = self.syn_out(spk1)
spk2, _ = self.out(cur2)
frontend_spk.append(spk0)
hidden_spk.append(spk1)
output_spk.append(spk2)
self.frontend_trace = torch.stack(frontend_spk, dim=1)
self.hidden_trace = torch.stack(hidden_spk, dim=1)
self.output_trace = torch.stack(output_spk, dim=1)
return self.output_trace
4. Training utilities
evaluate sums spikes over the time dimension and uses spike count as the confidence score for classification.
Warning
Beside the tau, another quickfix to gradient instability can be implemented by simply avoiding gradient update when it is not finite, as shown in the code below.
def evaluate(model, loader):
model.eval()
correct = 0.0
total = 0
with torch.no_grad():
for specs, labels, _ in loader:
specs = specs.to(device)
labels = labels.to(device)
spike_traces = model(specs)
correct += accuracy(spike_traces, labels)
total += 1
return correct / max(total, 1)
def train_model(
model,
train_loader,
val_loader,
*,
name,
epochs=20,
lr_frontend=1e-5,
lr_core=1e-3,
lam_topology=0.0,
lam_fr=0.0,
target_fr=0.15,
limit=1.66,
):
criterion = nn.CrossEntropyLoss()
optimizer = torch.optim.Adam(
[
{
"params": list(model.frontend.parameters())
+ list(model.frontend_layer.parameters()),
"lr": lr_frontend,
},
{
"params": list(model.syn_hidden.parameters())
+ list(model.hidden.parameters())
+ list(model.syn_out.parameters())
+ list(model.out.parameters()),
"lr": lr_core,
},
]
)
history = {"train_loss": [], "train_acc": [], "val_acc": []}
best_acc = 0.0
best_state = None
print(f"=== {name} ===")
for epoch in range(1, epochs + 1):
model.train()
running_loss = 0.0
running_correct = 0
running_total = 0
for specs, labels, _ in train_loader:
specs = specs.to(device)
labels = labels.to(device)
optimizer.zero_grad()
spike_traces = model(specs)
logits = spike_traces.sum(dim=1)
loss_main = criterion(logits, labels)
loss_topo = (
dense_topology_penalty(model, lam_topology)
if lam_topology
else torch.zeros((), device=logits.device)
)
loss_mag = weight_magnitude_loss(model, limit=limit)
loss_fr = (
firing_rate_target_mse_loss(
spikes_list=[spike_traces],
offsets=[target_fr],
multipliers=[lam_fr],
)
if lam_fr
else torch.zeros((), device=logits.device)
)
loss = loss_main + loss_topo + loss_mag + loss_fr
loss.backward()
grad_norm = torch.nn.utils.clip_grad_norm_(model.parameters(), max_norm=0.5)
# Skipping the gradient when it is not finite to avoid gradient explosion
if not torch.isfinite(grad_norm):
optimizer.zero_grad()
continue
optimizer.step()
preds = logits.argmax(dim=1)
running_correct += (preds == labels).sum().item()
running_total += labels.size(0)
running_loss += loss.item() * labels.size(0)
train_acc = running_correct / max(running_total, 1)
train_loss = running_loss / max(len(train_loader.dataset), 1)
val_acc = evaluate(model, val_loader)
history["train_loss"].append(train_loss)
history["train_acc"].append(train_acc)
history["val_acc"].append(val_acc)
if val_acc >= best_acc:
best_acc = val_acc
best_state = {
k: v.detach().cpu().clone() for k, v in model.state_dict().items()
}
if epoch == 1 or epoch % 5 == 0:
print(
f"epoch {epoch:02d} | loss={train_loss:.4f} | train={train_acc:.1%} | val={val_acc:.1%}"
)
if best_state is not None:
model.load_state_dict(best_state)
print(f"Best validation accuracy: {best_acc:.1%}")
return history, best_acc
def plot_histories(histories, title):
fig, axes = plt.subplots(1, 2, figsize=(12, 4))
for label, history in histories.items():
axes[0].plot(history["train_loss"], linewidth=2, label=label)
axes[1].plot(history["val_acc"], linewidth=2, label=label)
axes[0].set_title("Training loss")
axes[0].set_xlabel("Epoch")
axes[0].set_ylabel("Loss")
axes[0].grid(True, alpha=0.3)
axes[1].set_title("Validation accuracy")
axes[1].set_xlabel("Epoch")
axes[1].set_ylabel("Accuracy")
axes[1].set_ylim(0.0, 1.05)
axes[1].grid(True, alpha=0.3)
axes[1].legend(loc="lower right")
fig.suptitle(title)
plt.tight_layout()
plt.show()
5. Hardware-aware training with automatic init on H1v2
Automatic initialization functions are compatible with both H1v1 and H1v2 models.
Training uses the same hardware-aware setup as Tutorial 5: 6-bit quantization-aware training, topology loss, weight-magnitude loss, and firing-rate loss.
HIDDEN_SIZE = 64
EPOCHS = 50
torch.manual_seed(0)
np.random.seed(0)
model = H2YesNoNet(
N_CHANNELS,
hidden_size=HIDDEN_SIZE,
quantized=True,
).to(device)
print("Running fluct_init on the H1v2 network...")
frontend_firing_init(
model,
train_loader,
target_fr=0.15,
n_batches=4,
verbose=True,
)
# Alternatively init can be made via custom initializations
# init_weights(
# model.frontend,
# init=(nn.init.normal_, {"mean": 0.1, "std": 0.01}),
# )
fluct_init(
model,
train_loader,
xi_target=3.0,
alpha=1.0,
n_batches=4,
verbose=True,
)
history, best_acc = train_model(
model,
train_loader,
val_loader,
name="H1v2 yes/no with fluct_init",
epochs=EPOCHS,
lam_topology=0.05,
lam_fr=10.0,
target_fr=0.15,
lr_core=3e-4,
limit=1.66,
)

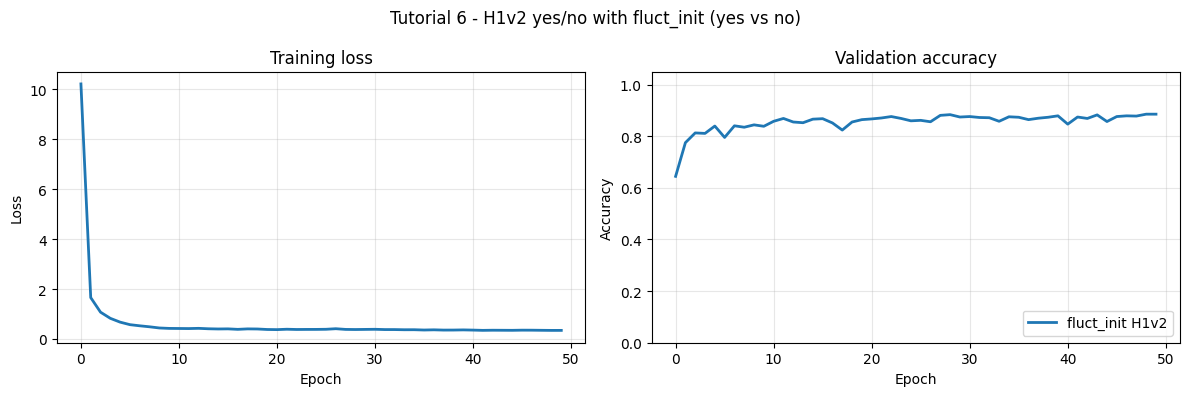

plot_histories(
{"fluct_init H1v2": history},
title=f"Tutorial 6 - H1v2 yes/no with fluct_init ({WORD_1} vs {WORD_2})",
)
print(f"\nBest validation accuracy: {best_acc:.1%}")
/tmp/ipykernel_160778/1021892339.py:21: UserWarning: Frontend on chip uses 16 filters. Using a different amount of neurons 13 is allowed but not respecting the chip constraints.
self.frontend = H1v2Frontend(
Running fluct_init on the H1v2 network...
[frontend_firing_init] target_fr=15.0% n_batches=4 epsilon=2.0% n_filters=13 [H1V2]
/opt/conda/envs/PyTorch/lib/python3.10/site-packages/IPython/core/interactiveshell.py:3579: UserWarning: H2Layer: dt/taus ratio 0.310 exceeds the BPTT stability limit 0.260 (J at mem=0 = -1.38, need |J| < 1). With dt=8.0 ms the minimum safe taus is 30.7 ms. H2 neurons spend >67% of time quiescent, so gradients can overflow to NaN within a few BPTT epochs. Increase taus or use a NaN guard (clip_grad_norm + skip step if grad_norm is not finite).
exec(code_obj, self.user_global_ns, self.user_ns)
neuron | w fr(cont) fr(quant)
neuron 0 | w=0.1714 fr=0.150 →0.170 [OK ]
neuron 1 | w=0.1644 fr=0.150 →0.185 [OK ]
neuron 2 | w=0.1623 fr=0.150 →0.189 [OK ]
neuron 3 | w=0.1637 fr=0.150 →0.186 [OK ]
neuron 4 | w=0.1633 fr=0.150 →0.185 [OK ]
neuron 5 | w=0.1631 fr=0.150 →0.185 [OK ]
neuron 6 | w=0.1684 fr=0.150 →0.177 [OK ]
neuron 7 | w=0.1739 fr=0.150 →0.167 [OK ]
neuron 8 | w=0.1786 fr=0.150 →0.159 [OK ]
neuron 9 | w=0.1830 fr=0.150 →0.152 [OK ]
neuron 10 | w=0.1871 fr=0.150 →0.146 [OK ]
neuron 11 | w=0.1878 fr=0.150 →0.145 [OK ]
neuron 12 | w=0.1882 fr=0.150 →0.145 [OK ]
[frontend_firing_init] done.
[fluct_init] ξ=3.0 α=1.0 dt=8.0ms (stacked, adaptive µ) [H1V2]
Frontend stage skipped — nu_out=21.1Hz used as nu_in for layer 1
Layer 1 | ν_in=21.1Hz µ_W=0.4160 σ_FF=0.4651 µ_U=0.080
→ nu_2 = 20.5 Hz
/opt/conda/envs/PyTorch/lib/python3.10/site-packages/IPython/core/interactiveshell.py:3336: UserWarning: fluct_init layer 2: 1/2 neurons are dead after init. The fluctuation-driven regime (σ_FF > 0) requires µ_W ≤ 0.1827, but avoiding dead neurons needs µ_W > 0.0283. Consider a smaller ξ, lower α, or more input neurons (n_F=64).
has_raised = await self.run_ast_nodes(code_ast.body, cell_name,
/opt/conda/envs/PyTorch/lib/python3.10/site-packages/IPython/core/interactiveshell.py:3579: UserWarning: fluct_init: some initialized weights fall outside the hardware range [-1.66, 1.66] for H1V2. These weights cannot be programmed on chip and will be flagged by is_net_deployable(). Add weight_magnitude_loss(model) to your training loss to softly enforce the constraint.
H1v2Synapse (13→64): 4/832 FF weights outside [-1.66, 1.66] (actual range [-0.802, 1.907])
exec(code_obj, self.user_global_ns, self.user_ns)
Layer 2 | ν_in=20.5Hz µ_W=0.0312 σ_FF=0.3447 µ_U=0.029
[fluct_init] done.
=== H1v2 yes/no with fluct_init ===
epoch 01 | loss=10.2217 | train=51.5% | val=64.4%
epoch 05 | loss=0.6740 | train=83.7% | val=83.9%
epoch 10 | loss=0.4231 | train=85.8% | val=83.8%
epoch 15 | loss=0.4002 | train=86.4% | val=86.6%
epoch 20 | loss=0.3797 | train=87.4% | val=86.4%
epoch 25 | loss=0.3831 | train=87.3% | val=85.9%
epoch 30 | loss=0.3828 | train=87.8% | val=87.4%
epoch 35 | loss=0.3703 | train=88.0% | val=87.5%
epoch 40 | loss=0.3632 | train=88.1% | val=87.9%
epoch 45 | loss=0.3461 | train=88.6% | val=85.7%
epoch 50 | loss=0.3436 | train=88.9% | val=88.5%
Best validation accuracy: 88.5%
Best validation accuracy: 88.5%
6. Summary
Tutorial 6 trains the same yes/no classifier as Tutorial 5 on the H1v2 chip. The key differences from the H1v1 path are:
| H1v1 (Tutorial 5) | H1v2 (Tutorial 6) | |
|---|---|---|
| Weight range | [-0.9, 0.9] |
[-1.66, 1.66] |
| Quantization bits | 5 | 6 |
| Frontend tau | 32 ms | 32 ms |
| fluct_init ξ target | 3.0 | 3.0 |
| Core learning rate | 1e-3 | 3e-4 |
The initialization pipeline and hardware-aware loss stack are otherwise identical. For empirical parameter guidance see the official documentation.
Tutorial 7 extends H1v2 to recurrent (RC) networks for temporal pattern generation.
